Polyurethane

HORIZONTAL CUTTING M/C

SA-2A

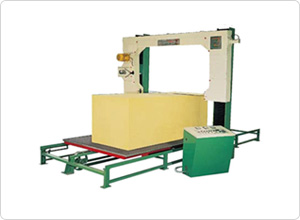

Automatic Horizontal Cutting Machine

SA-2A
Technical Data
Cutting Width 215 cm
Cutting Height 125 cm
Cutting Length 250 cm ( standard )
Cutting Thickness 2 mm ( depends on the type of material, in step of 1 / 10 mm)
Cutting Speed Approx. 0 - 56 m / min
Cutting Angle Adjustable 0 - 5 degrees
Cutting Pcs Counter 0 - 999 pcs
Bandknife Width 32 mm
Blade Guide Width 87 mm ( teflon coating )
Blade Tension Auto Controller
by Pneumatic		 Working pressure : 4 - 5 kg
Motorize Grinding Unit With dia. 100 mm cup
Grinding Attachment With motor suction and collecting equipment
Power Require 9 kW

SA-2AC

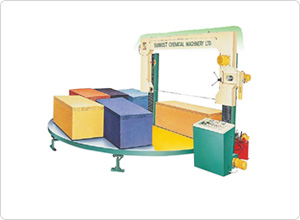

Automatic Circular Horizontal
Cutting Machine

SA-2AC
Technical Data
Cutting Width 216 cm
Cutting Height 125 cm
Cutting Length 220 cm ( standard )
Stacking Height 125 cm
Cutting Thickness Min. 2 mm ( depends on the type of material, in step of 1 / 10 mm)
Max. Cutting Speed Approx. 5 rpm
Motorize Grinding Unit With dia. 100 mm cup
Cutting Angle Adjustable 0 - 6 degrees
Cutting Pcs Counter 0 - 999 pcs
Table Size Inside Dia. 2 m, Outside Dia. 6.4 m ( standard )
Power Require 12 kW
