Polyurethane

CNC CONTOUR CUTTING M/C

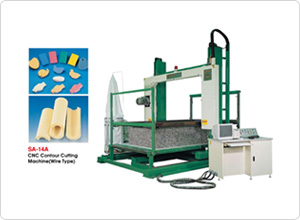

SA-14A

CNC Contour Cutting Machine ( Wire Type )

SA-14A
Technical Data
Working Length  2.2 m
Working Width  2.2 m
Working Height  1.3 m
Cutting Speed  0-8 m/min.
(the cutting speed can be pre-set to meet different raw material requirement.)
Cutting Wire  dia. 1.2-1.5 mm
(the different specification for different foam density soft, rigid, or rebonding foam.)
Power  3.7 kw x 1, for cutting wire drive
1.5 kw
2 kw x 2
90 w x 2

SA-14AK

CNC Contour Cutting Machine ( Knife Type )

SA-14AK
Technical Data
Working Length 2.2 m
Working Width  2.2 m
Working Height  1.3 m
Cutting Speed  0-20 m/min. (the cutting speed can be pre-set to meet different raw material requirement.)
Cutting knife  Length 12200mm x Width 4.5mm
Power  AC motor: 2 hp x 1, 1/2 hp x1, 40 w x 2, 120 w x 2
1.5 kw
Servomotor: 4 hp x 2, 1/2 hp x 1

SA-14ABK

CNC Contour Cutting Machine
( Oscillating Blade Type )

SA-14ABK
Technical Data
Working Length  2.2m
Working Width  2.2 m
Working Height  1.3 m
Cutting Speed  0-20 m/min. (the cutting speed can be preset to meet different raw material requirement.)
Cutting Knife  with 3.0mm width tooth blade
Power  5 hp x 1 for cutting knife drive
3 kw servo motor for X axial
3 kw servo motor for Y axial
0.4 kw servo motor for Z axial
120 w x 2 for block holder plate (up & down)
120W for center support
