Polyurethane

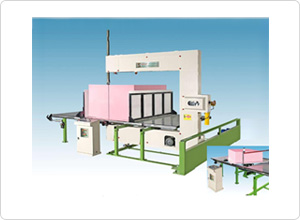

VERTICAL CUTTING M/C

SA-3A

Automatic Vertical Cutting Machine

SA-3A
Technical Data
Cutting Table Size  Inside of blade : 2184 mm
Outside of blade : 2184 mm
Length : 2184 mm
Cutting Blade  10 - 20 mm
Motorize Grinding Unit  With dia. 100 mm cup
Right Side Fence  Height : 800 mm ( standard )
Feeding cutting material speed : aprrox. 0 m - 11 m / min.
Left Side Fence  Height : 600 mm
Cutting Height  1000 mm, Motorized up and down adjustment of knife guide.
Power Require  Approx.9.3 kW
Floor Space  Approx. L 6410 x W 4600 x H 2960 mm

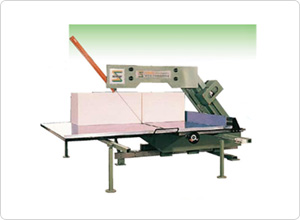

SA-3VA

Vertical and Angle Cutting Machine

SA-3VA
Technical Data
Table Size  Right side : 1200 mm
Left side : 1800 mm
Length : 2100 mm
Degree of angle adjustment  60 degree for the right side
Degree of angle adjustment  55 degree for the left side
Side Fence Height : 200 mm
Grinding Wheels  Dia. 75 mm
Cutting Height In 90 Degree 1000 mm
Power Require  2.4 kW

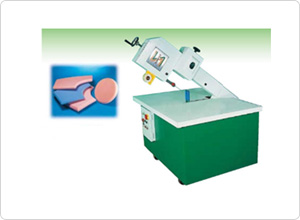

SA-3VAS

Small Angle Vertical Cutting Machine

SA-3VAS
Technical Data
Cutting Height At 90°  400 mm
Forward Cutting Up To  17°
Backward Cutting Up To  30°
Table Size 1050 x 1450 mm
Power Require 1.7 kW
Floor Space  Approx. L 1456 x W 1145 x H 1802 mm
